3.34 m
Max. print width
608 m² (163 boards)/hr
Max. productivity
up to 1200 dpi
Resolution
CMYK+W or CMYKck+W
Colours
Transform customer satisfaction.
Brilliantly.
The EFI™ VUTEk® Q3h series high-speed hybrid flatbed/roll-fed inkjet printers provide the highest-quality imaging and flexible and versatile production-level printing that will change the way you delight your customers with every sign and display application. And they feature the most advanced high-speed automation options we’ve ever offered, which is critical with today’s labour issues and cost-reduction initiatives.
Book a Demo
Offer customers more high-value applications
Indoor signage
Produce indoor signage for retail stores and restaurants by printing directly to foam board, aluminium, acrylic, styrene, and other rigid substrates.
Day/Night backlit graphics
Use white ink and multi-layer printing to produce premium-margin, high-quality backlit graphics that will set you apart.
Retail graphics
Print direct to rigid boards to create retail hanging signs, POP displays, and more.
Window, wall, and floor graphics
Use films with an adhesive backing to create full-colour graphics applied to the inside or outside of windows, and vinyl graphics on walls and walkways.
Tradeshow and exhibition graphics
Create backlit graphics, indoor hanging banners, rigid signs, and booth backdrops with the ability to print on rigid and flexible media .
Posters
A high-value application with a low production cost, posters can be printed on inexpensive media or more durable media depending on the duration and location of the installation.
Highlights
Versatile hybrid platform
Board, sheet, or roll-to-roll printing on media up to 5 cm thick. Industrial built for multiple-shift operation and 24/7 printing. Maintenance is limited and easy for maximum uptime.
Production-level printing
Six rows of printheads for 75 boards per hour at production speeds. Embedded continuous print to maximise productivity and advanced automation options.
Brilliant print quality
Four or six colours plus white and multilayer printing. Print quality resembles offset printing, with low pile height, fine details, and smoothness throughout. Its 7pL droplets produce stunning images up to 1200 dpi.
LED technology
Extend your range of supported substrates, increase uptime, reduce operating costs, and move towards more sustainable production with low VOCs, lower energy consumption, and less waste and consumables.
Genuine EFI Inks
Specially formulated to print on rigid and flexible media, GREENGUARD Gold certified EFI VUTEk Q3h Series LED inks offer a wide color gamut and high colour vibrancy, accurate spot colour, and neutral grey printing, as well as excellent solid colours, fine detail reproduction, and outstanding skin tone rendering.
Fiery Driven
Fiery® proServer Premium digital front end with colour management workflow and RIP optimised for EFI VUTEk printers.
High density rendering (HDR)
A unique, optional print algorithm for enhanced colour quality and density that does not affect print speed. Allows added colour gamut while remaining in four-colour mode.
Double-sided printing
An option that uses individual QR code scanning for image content and position. The three-point pin registration is used for sheeted media. Supports single- and dual-roll double-sided printing on the Production and Super Duty roll-to-roll units.
Clear ink
Optional clear ink can be used to enhance an entire image (full flood) or selected areas (spot) to add extra pop to colours or special effects to graphics. Prints in line with the other colours and provides a hard surface cure with a gloss finish.
Media edge guides
The optional media edge guides (MEG) keep warp-prone media flat. They are easy to access and adjust based on media thickness and width.

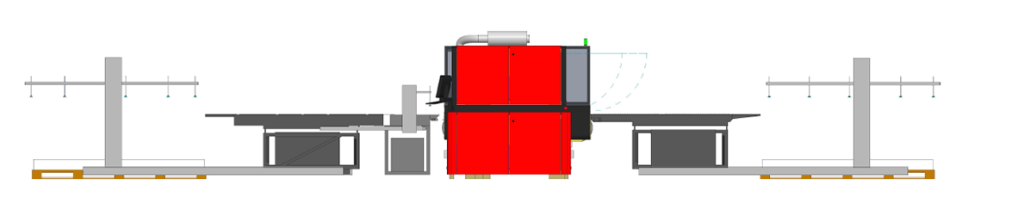

Media handling and automation options

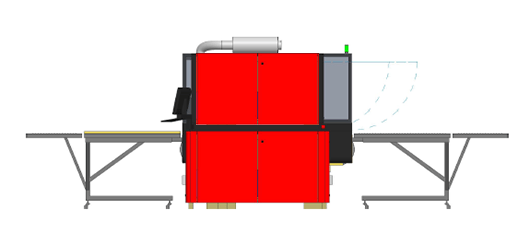

Manual loading and unloading
- Input and output tables for single or multiple board printing
- Available in 700 mm, 1650 mm, and 2150 mm depths
- Perfect for short runs or handling different types of media
- Optional 3-point alignment bar on the input table for easy and accurate media alignment; supports precise double-sided printing of thin or skewed media
