EFI Pro 32r+

126 in

Max. print width

2,756 ft²/hr

Max. productivity

up to 847 dpi

Resolution

CMYK + optional white, clear

Colors

Grow. Profit. Change the game.

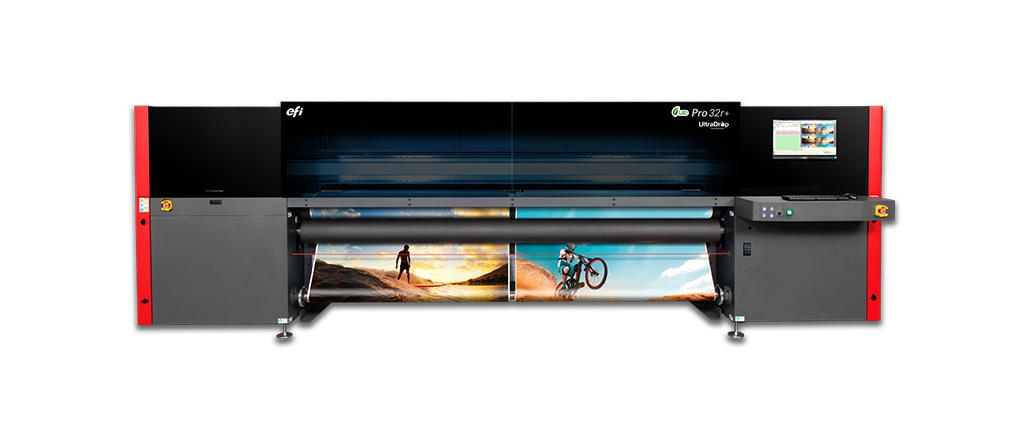

The 3.2-meter EFI™ Pro 32r+ roll-to-roll LED printer can help your business up its game with added capacity, more throughput, and faster turns. We designed the Pro 32r+ to be everything you need to be more competitive and profitable in an economical, all-in-one, production-level printer. Win more jobs, eliminate outsourcing, and confidently commit to larger capacity runs.

Highlights

Productive roll-to-roll printing

Add significantly more capacity and offer customers a wider range of applications — including white, textiles, and double-sided — on a wider range of substrates. All with lower running costs, thanks to better ink consumption and lower power bills.

High-quality imaging

Piezo drop-on-demand inkjet technology with 7pL UltraDrop™ Technology for up to 1200 dpi true resolution.

Industry-leading LED technology

Extend your range of supported substrates, increase uptime, reduce operating costs, and move towards more sustainable production with low VOCs, lower energy consumption, and less waste and consumables.

EFI UltraClear Coat

EFI UltraClear Coat can be used for decorative applications as well as for a final protective coating. It prints inline, simultaneously with the image, saving time versus using a separate
offline coating system, and in gloss or matte finishes.

Ink for a super range of applications

EFI – 3M™ SuperRange UV LED Ink offers a hard surface cure, a wide color gamut, and excellent adhesion properties, making it the ideal choice for a super wide range of materials and printing applications. SuperRange Ink offers the industry-leading 3M™ MCS™ Warranty when printing with cobranded EFI and 3M UV LED inks on 3M flexible media.

Value-added features to up your game

The EFI Pro 32r+ printer comes with an integrated mesh kit, a wrinkle analyzer, backlit proofing lights, and advanced software settings to help you be more productive and profitable.

Fiery Driven

Includes built-in Fiery®, featuring FAST RIP acceleration technology, plus RIP and print-on-demand functionality or the ability to print pre-ripped files.
Learn more >

Fiery IQ

Use the Fiery IQ™ suite of cloud applications to connect your people, processes, and print devices to make better data-driven decisions that improve your ROI, minimize cost, maximize profit, and boost your revenue.
Learn more >

Leading print providers choose EFI

Customer Story

BS2i makes the right choice with an EFI VUTEk 5r+ roll-to-roll LED printer.

This is a production printer that’s capable of taking on large volumes of printing with very high-quality results.

Janette Cacciopo

CEO

Read the Story

01 / 02

Customer Story

For over 25 years, ATC Groupe's mission has been to keep themselves at the forefront of technology and innovation.

We do multi-roll printing with two or even three rolls of different widths without any problems. So, we can do all types of jobs, from the smallest to the largest, all with outstanding quality

Christophe Aussenac

CEO

Read the Story

02 / 02

Power Tools to boost your capabilities and profits

Y-slitter – for vertical trimming of margins or slitting of a single media into multiple jobs, minimizing media waste and increasing the printing area.

  • Simultaneous cutting of media on the Y-axis and printing
  • Modifiable configuration:
    • Single-bladed for trimming margins
    • Double-bladed for slitting of single media into two jobs (blades are fixed 0.3 in/8 mm apart)
  • Simple and easy installation with no tools required
  • Easy manual adjustment of position along the printing table
  • Retractable blades for maximum safety
  • Includes waste collectors to roll up the trimmed remnants to increase your overall productivity and eliminate the mess

White printing

  • Enables printing on colored and transparent media
  • Opens up a myriad of creative possibilities
  • Instant uptime of white printheads, thanks to the advanced circulation system in the ink tanks and along the entire ink system
  • Multiple white print modes for various challenging applications:
    • White only
    • White as background
    • White on top of color
    • White for backlit applications (C-W-C)
    • Five-layer printing (C-W-B-W-C) for blockout printing on clear
  • Various additional three- and five-layer print modes

UltraClear Coat

  • Printed inline, simultaneously with the image
  • Printed on top of the color layer
  • Enhances the output, adding extra pop to the colors and offering beautiful creative possibilities
  • Full flood or selective
  • Glossy or matte finish with the same ink
  • Provides three years of outdoor protection against:
    • Abrasion and scratching
    • Chemicals such as detergents, gasoline, and IPA
    • Weather damage
    • Air pollution
    • UV fading/yellowing
  • Saves time versus separate offline coating systems

Automatic blockout printing – an automatic system that enables printing on both sides of opaque blockout media, resulting in excellent registration between sides.

  • Accuracy of ≤ 5 mm over 10 linear meters
  • Includes an optical sensor system, dedicated electronics, and software
  • Simple, easy, and fully automatic system
  • Eliminates the need for guesswork and manual manipulation
  • Reduces required operator skill level
  • Two available workflows, are to be defined before printing:
    • Head-to-head printing for short jobs where media is rolled back, flipped over, and reinstalled with side B up
    • Head-to-tail printing for longer jobs where printed media is collected on a front core, flipped over, and reinstalled with side B up

Automatic backlit printing – Automatic, patented system for perfectly aligned double-sided backlit printing on backlit media.

  • Accuracy of ≤ 0.08 in (2 mm) over 32 linear feet (10 linear meters)
  • Camera-guided software automatically corrects registration on x, y, and tilt axes
  • Includes two cameras, LED strip along the printing table, and dedicated software
  • Simple, easy, and fully automatic system
  • Eliminates the need for guesswork and manual manipulation
  • Reduces required operator skill level

Three-meter super duty winder – fully integrated unwinder or rewinder option for EFI VUTEk roll-to-roll 3m and 5m printers.

  • Enables working with heavy 10 ft (3 m) media rolls up to 1,748 lbs (793 kg)
  • Enables continuous, uninterrupted work without stopping to change rolls
  • Increases productivity in high volume runs due to less make ready
  • Equipped with dancer and external motor
  • Material width: 126 in (320 cm)
  • Maximum media diameter: 28 in (70 cm)
  • Standard 3 in core; optional 6 in core

Dual roll split shaft for the EFI Pro 32r+ – consists of two individual motorized airshafts. Ensure precise and accurate media collection and improved media advance, resulting in excellent print quality.

  • Enables printing simultaneously on two media rolls with different diameters
  • Tension between the rolls is automatically adjusted according to the media diameter
  • Media loading and unloading is flexible, simple, and quick
  • Shafts can be inflated to fixate the media and avoid shifting side to side
  • Supports media rolls up to 441 lbs (200 kg) per shaft

Media edge guard (MEG) – used for media types with uneven or wavy edges that tend to curl or unravel, such as textiles and wallpaper.

  • Designed to protect the print carriage and printheads from crashing into uneven media edges
  • Eliminates ruined jobs and prevents media waste
  • Can be attached quickly and easily with magnets anywhere along the printing table
  • Use as many units as needed and multiple units for multi-roll printing

Wrinkle analyzer – helps avoid printhead strikes caused by media wrinkles, saving time and money by preventing ruined jobs and enabling the use of lower-cost media.

  • Media height detector identifies a media wrinkle before it reaches the printhead
  • The front-end software prompts the user to raise the carriage just enough to avoid a head strike that may ruin the job and, then, to resume printing

Media saving wizard

  • Designed to improve media stock management
  • The user enters the length of the media each time a new or partially used roll is loaded into the software
  • Before the media is removed from the printer, a label with the remaining media length is printed on the rim of the roll
  • The software will alert the user before starting a job if the remaining media on the roll is insufficient for the job

Use the Fiery IQ suite of cloud applications to connect your people, processes, and print devices to make better data-driven decisions that improve your ROI, minimize cost, maximize profit, and boost your revenue.

Resources

EFI Roll-to-Roll Power Tools to Boost your Productivity

EFI Roll-to-Roll Power Tools to Boost your Productivity

EFI superwide and wide format roll-to-roll LED printers feature a rich collection of value-added options that transform them into all-in-one, multi-purpose platforms — expanding your capabilities, application offerings, and profit opportunities

7 Signs It’s Time to Upgrade

7 Signs It’s Time to Upgrade

Here are 7 signs that it’s time to upgrade your roll-to-roll production printer.

Upgrade to Lower Costs

Upgrade to Lower Costs

Learn how you can drive down your operating costs when you upgrade to an EFI LED roll-to-roll printer.

EFI Pro 32r+ Gives Larchfield Aerospace & Graphics a Sharper Competitive Edge

Larchfield Aerospace & Graphics gains a competitive edge with more consistent color from job to job, faster job turnaround times, and greater production efficiencies with the EFI Pro 32r+ roll-to-roll LED printer.

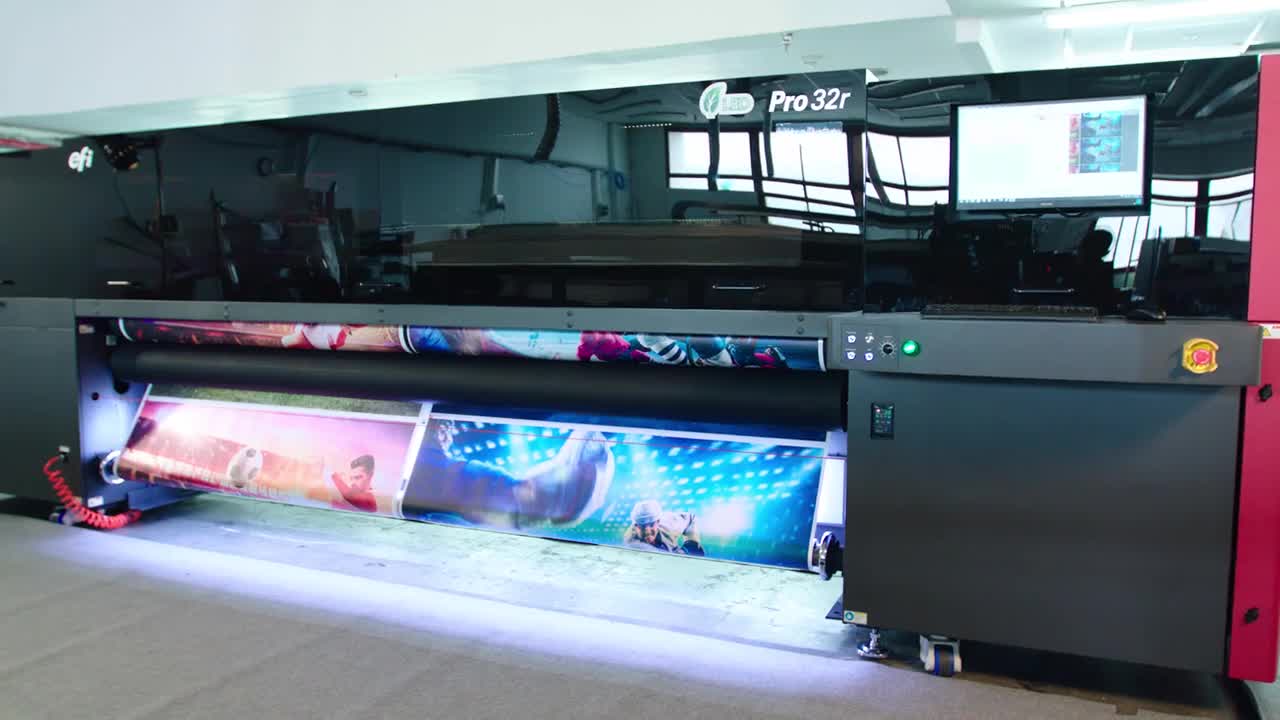

Dataprint Responds to Tighter Deadlines with the EFI Pro 32r
