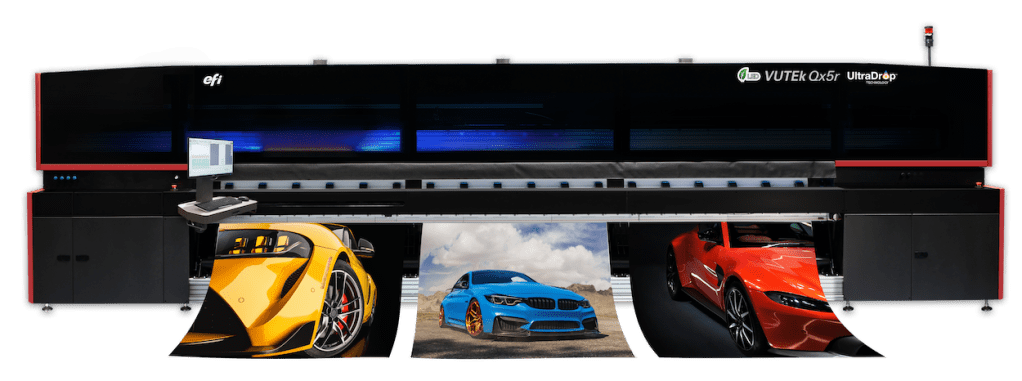

EFI VUTEk Qx5r

Manual Y-slitter – for the vertical trimming of margins or slitting media into multiple jobs, minimizing media waste and increasing the printing area.

• Simultaneous printing and media cutting on the Y-axis
• Easy manual adjustment of the slitter position along the printer table
• Modifiable configurations include:
  • Single-bladed for trimming margins
  • Double-bladed for slitting of single media into two jobs (blades are fixed 0.3 in/8 mm apart)
• Simple and easy installation with no tools required
• Retractable blades for maximum safety
• And waste collectors to roll up trimmed remnants, increasing overall productivity and eliminating the mess

X-cutter – unique roll-to-sheet horizontal cutter incorporated in the printer.

• Automatically cuts media on the X-axis between jobs on the fly
• Controlled via the front-end software
• Does not affect productivity
• Saves valuable time at the finishing station
• Replaces expensive cutting equipment and saves space
• Prevents finishing errors and increases yield

InSpec AI -real-time inspection, automated correction, and AI-powered quality control built into the print workflow.

• High-resolution camera continuously scans and captures the output during printing
• A stitching algorithm creates a high-resolution digital copy of the actual printed output, which is displayed on a dedicated monitor in real time
• The recorded output is stored for traceability, and post-analysis job history is kept for future reference
• InSpec AI  (a licensed add-on) detects print imperfections, classifies them, issues real-time alerts, and can automatically intervene to stop or make corrections
• An evolving AI platform with continuous learning and process optimization

InSpec – vision system installed on the print carriage that performs automatic inline print quality monitoring for single and multi-roll printing. Includes a camera and light source as well as dedicated electronics and software. Designed to identify print imperfections in real-time during the print process, fix them when possible, and alert the user.

ID backprint – a device that prints file information on the back of the media, facilitating the identification of finished jobs for packing, shipping, and installation.

• Printed data includes:
  • File ID
  • Printing date and time
  • Print mode
  • Copy number and more
• Prints with black or white ink (for dark-backed media)
• Supports barcodes and QR codes
• Eliminates the need for manual labeling
• Helps prevent shipping errors
• Saves time during installation of the printed job

Automatic blockout printing – an automatic system that enables printing on both sides of opaque blockout media, resulting in excellent registration between sides.

• Accuracy of ≤ 5 mm over 10 linear meters
• Includes an optical sensor system, dedicated electronics and software
• Simple, easy, and fully automatic system
• Eliminates the need for guesswork and manual manipulation
• Reduces required operator skill level
• Two available workflows, to be defined before printing:
  • Head-to-head printing for short jobs where media is rolled back, flipped over, and reinstalled with side B up
  • Head-to-tail printing for longer jobs where printed media is collected on a front core, flipped over, and reinstalled with side B up

Notes

• Single-roll printing for side B
• Use of X-cutter and Y-slitters with automatic blockout is limited:
  • Slitters – possible according to built-in instructions
  • Cutter – can be used for side B

Automatic backlit printing – Automatic, patented system for perfectly aligned double-sided backlit printing on backlit media.

• Accuracy of ≤ 0.08 in (2 mm) over 32 linear feet (10 linear meters)
• Camera-guided software automatically corrects registration on x, y, and tilt axes
• Includes two cameras, LED strip along printing table, and dedicated software
• Simple, easy, and fully automatic system
• Eliminates the need for guesswork and manual manipulation
• Reduces required operator skill level

White printing

• Enables printing on colored and transparent media
• Opens up a myriad of creative possibilities
• Instant uptime of white printheads, thanks to advanced circulation system in the ink tanks and along the entire ink system
• Multiple white print modes for various challenging applications:
  • White only
  • White as background
  • White on top of color
  • White for backlit applications (C-W-C)
  • Five-layer printing (C-W-B-W-C) for blockout printing on clear
• Various additional three- and five-layer print modes

Seven-color printing

• Enabled by adding three light colors: light cyan, light magenta, and light black
• Based on the existing printhead configuration, without adding more heads

Benefits

• Expanded color gamut
• Smooth gradient transitions
• Vivid and crisp colors
• Fine details
• Smooth skin tones

UltraClear Coat can be used for decorative applications and as a final protective coating. It prints inline, simultaneously with the image, saving time compared to using a separate offline coating system, and in gloss or matte finishes.

• Prints on top of the color layer, full flood or selective
• Enhances the output, adding extra pop to the colors and offering beautiful creative possibilities
• Glossy or matte finish with the same ink
• Provides three years of outdoor protection against:
  • Abrasion and scratching
  • Chemicals such as detergents, gasoline, and IPA
  • Weather damage
  • Air pollution
  • UV fading/yellowing
• Saves time versus separate offline coating systems

Mesh printing options – for faster, easier, and cleaner printing on mesh and other porous substrates.

Integrated mesh kit – included with the printer.

Auto mesh system – optional Power Tool.

• Full-shift, continuous mesh printing
• Reduces mist and overspray
• Decreases operator labor
• Four user-defined blotter speed levels

Note: Consumable blotter paper supplied by EFI.

Motorized winder – integrated winder and unwinder solution with motorized pneumatic inflatable core shafts for precise and excellent media collection.

• Improves media advancement and print quality
• Allows using larger and heavier rolls
• Supports full printer width media as well as multi-roll printing:
  • 2 x 5.2 ft (2 x 1.6 m) units for 3 m printer models, front/back
  • 3 x 5.2 ft (3 x 1.6 m) units for 5 m printer models, front/back

Media spreaders – a pair of clamp-like devices that stretch the media sideways to enable neat media inlet to the printer.

• Helps prevent potential media wrinkles
• Improves media advance
• Facilitates printing on various types of challenging media
• Easy to install at both ends of the press beam on the rear of the printer
• Position and tilt angle are adaptable to the media type and width

Media edge guard (MEG) – used for media types with uneven or wavy edges that tend to curl or unravel, such as textiles and wallpaper.

• Designed to protect the print carriage and printheads from crashing into uneven media edges
• Eliminates ruined jobs and prevents media waste
• Can be attached quickly and easily with magnets anywhere along the printing table
• Use as many units as needed and multiple units for multi-roll printing

Three-meter super duty winder – fully integrated unwinder or rewinder option for EFI VUTEk roll-to-roll 3m and 5m printers.

• Enables working with heavy 10 ft (3 m) media rolls up to 1,748 lbs (793 kg)
• Enables continuous, uninterrupted work without stopping to change rolls
• Increases productivity in high-volume runs due to less make-ready
• Equipped with dancer and external motor
• Material width: 126 in (320 cm)
• Maximum media diameter: 28 in (70 cm)
• Standard 3 in core; optional 6 in core

Wrinkle analyzer – helps avoid printhead strikes caused by media wrinkles, saving time and money by preventing ruined jobs and enabling the use of lower-cost media.

• Media height detector identifies a media wrinkle before it reaches the printhead
• The front-end software prompts the user to raise the carriage just enough to avoid a head strike that may ruin the job and then to resume printing

Mobile operator station – mobile workstation slides from its home position towards the middle of the printer.

• Saves the operator from moving back and forth between the station and the output
• Equipped with a touch screen for quick and easy operation
• Increases productivity and usability

Quality maintenance kit – enables printer operators to self-diagnose and fix print quality issues, including:

• Uncalibrated printer
• Missing or deficient nozzles

• Self-ownership and fast onsite reaction
• Minimizes service visits and increases uptime
• Extends printhead lifespan up to 30% on average
• The optional system includes software and a dedicated scanner

Missing Nozzles Compensation System identifies faulty nozzles that cause print quality issues, and assigns other nozzles to compensate from that point on.

Media saving wizard

• Designed to improve media stock management
• The user enters the length of the media each time a new or partially used roll is loaded into the software
• Before the media is removed from the printer, a label with the remaining media length is printed on the rim of the roll
• The software will alert the user before starting a job if the remaining media on the roll is insufficient for the job
